Underground Mining Strip with High Temperature Resistance
  • Underground Mining Strip with High Temperature Resistance
  • Underground Mining Strip with High Temperature Resistance
  • Underground Mining Strip with High Temperature Resistance

Underground Mining Strip with High Temperature Resistance

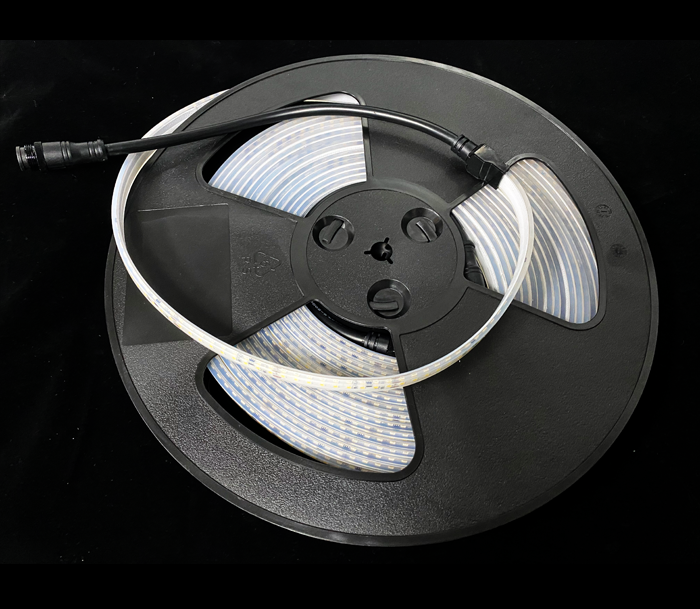

The strip light use super toughening silica gel soft overmolding process, the outlet end with a mould

injection waterproof connector, waterproof power supply, effectively enhance the waterproof

performance of products, LED strip light outsourcing silicone elastomer with good flame retardancy, and

has a certain impact resistant, High brightness with long working time. this strip light is used for dust,

humidity, rain, tremors, compressive environment and under the environment of corrosive gas lighting.


Share
  • product details
  • video
Features:



The new designs incorporate cluster management technology, whereas the LEDs are fixed onto PCB boards forming clusters which are then welded together and extruded in a food grade silicone to form the actual strip lighting, these PCB boards are connected in parallel with the electrical circuit working together in synergy as a lighting platform, but independently in the unlikely case of failure, this means if there is a failure on any components of the lighting it would be isolated and not affect the remaining lighting system.




Plug and play system

Conventional lighting requires separate power and a wired connection to every lamp, needing the expertise of electricians. This becomes labour-intensive and costly when running many meters of lighting. The BRANDO LED Strip Lighting plugs  into an existing power source using a power supply which then connects to one end of the LED strip. A single power supply will light a 20 meter LED section. To extend beyond 20 meters, just add another power supply at the other end and connect the next section of LED strip – it's that simple.



9 Benefits of LED Strips



LED strip lights have revolutionized the lighting world. From being highly efficient to longer life cycles the benefits of LED strips is one of today’s technologies breakthroughs.  A led strip light is a flexible circuit board of LEDs that can be mounted to virtually any surface that you’re looking to add influential lighting. LED strips are available in a range of colors and brilliance.



Adjustable

LED strips can be cut to any length. From cutting the strip a few inches to several feet, you can customize the length on any LED strip to fit the exact needs of your project.



Flexible

LED strips can be curved vertically up to 45 degrees. With LED light strips you can install them in places that were previously inaccessible.



Best Color Variety

LED strips are available in any tone white all the way up to any color. Using RGB LED strip lights and a controller you can set and control the exact color and brightness.



Super Thin

LED strips are only 4mm thick making them easy to install in tight areas and you can easily hide the LED strips from plan-view.



Easy To Install

LED strip lights come with cable ties, plastic or metal clips making it easy to attach the lights to a wide variety of surface.



Dimmable Lighting

LED strip lights can be dimmed using home lighting systems, DMX and dimming controllers, and remote controls. This allows you to set the perfect mood!



Safe

Look for IP67, and IP68 rating for dust and waterproof resistant LED strip lights.



Custom

With LED strip lights you have full control over the color, length, CRI, brightness, and voltage.



Lower Cost of Ownership

LED strips to use 50% less energy than traditional fluorescent, incandescent, and halogen lights. This savings in energy equates to a small energy bill. Also, the average LED strip lasts 50,000 hours keeping the need for a replacement for every 5-10 years.




BO-SL60-36V(B) cuttable led strip light with a mould injection waterproof connector


Technical parameters:


Part Number                     BO-SL140-17W-110V(B)
LED ChipEpistar
LED configuration140 LED's spaced evenly over a metre length
Range fed from both sides80 metres
Recommended fixing height5-6 Metres
IP Rating68
Power Consumption per LED0.12 Watts
Power Consumption per Metre17 Watts
Colour Rendering Index CRI> 80
Colour temperature6500 Kelvin
Luminous Efficacy95 Lumens / Watt
Voltage on lighting VAC110 VAC
Light maintenance15%-20% Drop over 4 years
Lifespan5 Years +
Warranty Lighting1 Years
Outer coveringFood grade silicone
Dimensions10000mm(length) *14mm(width) *4mm(height)
Tensile strength+-50KG
Operating temperature-40℃ to 80℃
ProtectionShort Circuit
Over Voltage
Over temperature
Over Current



Part Number                     BO-SL70-8W-36V(B)
LED ChipEpistar
LED configuration70 LED's spaced evenly over a metre length
Range fed from both sides120 metres
Recommended fixing height5-6 Metres
IP Rating68
Power Consumption per LED0.12 Watts
Power Consumption per Metre8 Watts
Colour Rendering Index CRI> 80
Colour temperature6500 Kelvin
Luminous Efficacy100 Lumens / Watt
Voltage on lighting VAC110 VAC
Light maintenance15%-20% Drop over 4 years
Lifespan5 Years +
Warranty Lighting1 Years
Outer coveringFood grade silicone
Dimensions10000mm(length) *14mm(width) *4mm(height)
Tensile strength+-50KG
Operating temperature-40℃ to 80℃
ProtectionShort Circuit
Over Voltage
Over temperature
Over Current
